[spring] security 0. DB생성, pom.xml작성

congs 2023. 6. 22. 14:53
  • _spring_project2에 만들 예정



1. DB 생성 및 권한 부여( mysql workbench 이용 )

local mysql로 들어가기

1. springtestdb 생성

상단 통 모양을 눌러 DB를 생성하고 apply -> apply!

2. springuser에게 springtestdb의 모든 권한 부여

왼쪽하단의 adven..클릭하고 - springuser에게 springtestdb권한 모두 주고 apply!





2. springtestdb에 table 생성 ( 명령 프롬프트 )

  1. member table 생성 : id대신 email로 통합할 예정
  2. board table 생성
  3. auth_member table 생성 :  권한 테이블
  4. forigen key로 auth_membet랑 member연결하기
mysql -uspringuser -pmysql

use springtestdb;

create table member(
email varchar(100) not  null,
pwd varchar(1000) not null,
nick_name varchar(100) not null,
reg_at datetime default now(),
last_login datetime default now(),
grade tinyint default 10,
primary key (email)
);


create table board (
bno bigint not null auto_increment,
title varchar(200) not null,
content text not null,
writer varchar(100),
reg_at datetime default now(),
mod_at datetime default now(),
read_count int default 0,
primary key (bno)
);

create table auth_member (
email varchar(100) not null,
auth varchar(50) not null
);

alter table auth_member add constraint fk_auth foreign key (email) references member(email);





3.  STS에서  _spring_project2에 기본 설정하기

  1. encoding설정하기 (utf-8로 설정)
  2. server에 tomcat9 연결
  3. run/debug에서 console buffer size를 10000000으로 설정
  4. java에서 jdk-11로 연결되어있는 것까지 확인!

인코딩 설정
server에 tomcat연결
console buffer size를 10000000으로 설정
java에서 jdk-11로 연결되어있는 것까지 확인!  (compiler도 11)





4. file생성 : Spring Legacy Project로 생성

File - new - other
spring검색 -> spring legacy project 클릭
spring_java_config로 이름 설정하고 spring MVN Project 클릭후 next
com.myweb.www 작성 후 finish!





5.  파일 설정 + 서버 연결 하기

  • 서버 설정 ( tomcat9로 연결하고 8088, / 으로 변경 )
  • 파일 properties 설정

edit을 이용하여 javaSE-11로 변경 apply
module을 4.0, java는 11, runtimes에 체크하고 apply





 6. pom.xml 설정



< 추가할 mvnrepository >

1)  logback ( 1.2.3 버전 )

  1. logback-classic 1.2.3
  2. logback-core 1.2.3
  3. log4jdbc-log4j2-jdbc4.1 1.16
<!-- https://mvnrepository.com/artifact/ch.qos.logback/logback-classic -->
<dependency>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
<version>1.2.3</version>
</dependency>
( 여기서 <scope>test</scope>는 삭제하는 것이 좋아서 지움 )


<!-- https://mvnrepository.com/artifact/ch.qos.logback/logback-core -->
<dependency>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-core</artifactId>
<version>1.2.3</version>
</dependency>


<!-- https://mvnrepository.com/artifact/org.bgee.log4jdbc-log4j2/log4jdbc-log4j2-jdbc4.1 -->
<dependency>
<groupId>org.bgee.log4jdbc-log4j2</groupId>
<artifactId>log4jdbc-log4j2-jdbc4.1</artifactId>
<version>1.16</version>
</dependency>

추가 후의 logging ( 이전에 있던 것들은 org.slf4j을 제외하고 삭제함 )

logging 설정하고 잠깐!!

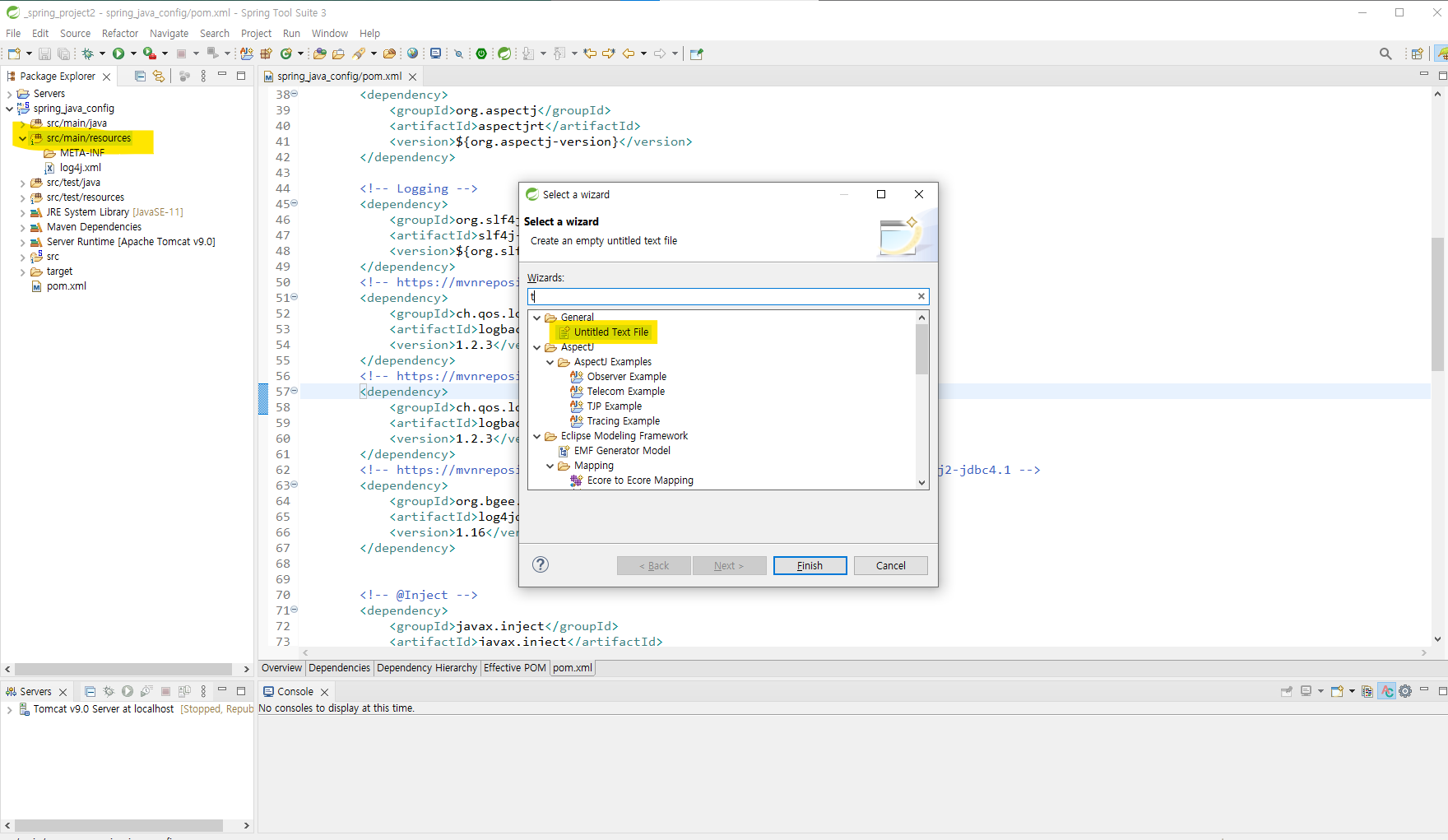

7.  Logging을 위한 src/main/resources폴더에 text파일 생성하기

log4jdbc.spylogdelegator.name=net.sf.log4jdbc.log.slf4j.Slf4jSpyLogDelegator

이름 중요!!

생성 완료!!



 8. 다시 pom.xml 설정

- security 다운 ( 5.5.3 버전 )

  1. spring-security-core 5.5.3
  2. spring-security-web 5.5.3
  3. spring-security-config 5.5.3
  4. spring-security-taglibs 5.5.3
<!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-core -->
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-core</artifactId>
<version>5.5.3</version>
</dependency>


<!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-web -->
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-web</artifactId>
<version>5.5.3</version>
</dependency>


<!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-config -->
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-config</artifactId>
<version>5.5.3</version>
</dependency>


<!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-taglibs -->
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-taglibs</artifactId>
<version>5.5.3</version>
</dependency>



- lombok

<!-- lombok -->
<!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.22</version>
<scope>provided</scope>
</dependency>



- DB관련

  1. mysql
  2. mybatis
  3. mybatis-spring
  4. spring-jdbc
  5. spring-test
  6. HikariCP
<!-- DB관련 -->
<!-- mysql -->
<!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.28</version>
</dependency>

<!-- mybatis -->
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.9</version>
</dependency>

<!-- mybatisSpring -->
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.6</version>
</dependency>

<!-- spring-jdbc -->
<!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${org.springframework-version}</version>
</dependency>

<!-- spring-test! -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${org.springframework-version}</version>
</dependency>

<!-- HikariCP! -->
<dependency>
<groupId>com.zaxxer</groupId>
<artifactId>HikariCP</artifactId>
<version>5.0.1</version>
</dependency>



== 최종 web.xml ==

  • mvnrepository에서 다운받은 항목넣고
  • 버전 변경하고
  • 하단에 <plugin>부분 추가했음
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.myweb</groupId>
	<artifactId>www</artifactId>
	<name>spring_java_config</name>
	<packaging>war</packaging>
	<version>1.0.0-BUILD-SNAPSHOT</version>
	<properties>
		<java-version>11</java-version>
		<org.springframework-version>5.3.10</org.springframework-version>
		<org.aspectj-version>1.6.10</org.aspectj-version>
		<org.slf4j-version>1.7.30</org.slf4j-version>
		<spring.security-version>5.5.3</spring.security-version>
	</properties>
	<dependencies>
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
			<exclusions>
				<!-- Exclude Commons Logging in favor of SLF4j -->
				<exclusion>
					<groupId>commons-logging</groupId>
					<artifactId>commons-logging</artifactId>
				 </exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- AspectJ -->
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>${org.aspectj-version}</version>
		</dependency>

		<!-- Logging -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${org.slf4j-version}</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/ch.qos.logback/logback-classic -->
		<dependency>
		    <groupId>ch.qos.logback</groupId>
		    <artifactId>logback-classic</artifactId>
		    <version>1.2.3</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/ch.qos.logback/logback-core -->
		<dependency>
		    <groupId>ch.qos.logback</groupId>
		    <artifactId>logback-core</artifactId>
		    <version>1.2.3</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.bgee.log4jdbc-log4j2/log4jdbc-log4j2-jdbc4.1 -->
		<dependency>
		    <groupId>org.bgee.log4jdbc-log4j2</groupId>
		    <artifactId>log4jdbc-log4j2-jdbc4.1</artifactId>
		    <version>1.16</version>
		</dependency>


		<!-- @Inject -->
		<dependency>
			<groupId>javax.inject</groupId>
			<artifactId>javax.inject</artifactId>
			<version>1</version>
		</dependency>

		<!-- Servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
			<version>4.0.1</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>javax.servlet.jsp-api</artifactId>
			<version>2.3.3</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>

		<!-- Test -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.7</version>
			<scope>test</scope>
		</dependency>
		<!-- lombok -->
		<!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
		<dependency>
		    <groupId>org.projectlombok</groupId>
		    <artifactId>lombok</artifactId>
		    <version>1.18.22</version>
		    <scope>provided</scope>
		</dependency>
		<!-- DB관련 -->
		<!-- mysql -->
		<!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
		<dependency>
		    <groupId>mysql</groupId>
		    <artifactId>mysql-connector-java</artifactId>
		    <version>8.0.28</version>
		</dependency>
		<!-- mybatis -->
		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
		<dependency>
		    <groupId>org.mybatis</groupId>
		    <artifactId>mybatis</artifactId>
		    <version>3.5.9</version>
		</dependency>
		<!-- mybatisSpring -->
		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
		<dependency>
		    <groupId>org.mybatis</groupId>
		    <artifactId>mybatis-spring</artifactId>
		    <version>2.0.6</version>
		</dependency>
		<!-- spring-jdbc -->
		<!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
		<dependency>
		    <groupId>org.springframework</groupId>
		    <artifactId>spring-jdbc</artifactId>
		    <version>${org.springframework-version}</version>
		</dependency>
		<!-- spring-test! -->
		<dependency>
		    <groupId>org.springframework</groupId>
		    <artifactId>spring-test</artifactId>
		    <version>${org.springframework-version}</version>
		</dependency>
		<!-- HikariCP! -->
		<dependency>
		   <groupId>com.zaxxer</groupId>
		   <artifactId>HikariCP</artifactId>
		   <version>5.0.1</version>
		</dependency>

		<!-- security -->
		<!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-core -->
		<dependency>
		    <groupId>org.springframework.security</groupId>
		    <artifactId>spring-security-core</artifactId>
		    <version>5.5.3</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-web -->
		<dependency>
		    <groupId>org.springframework.security</groupId>
		    <artifactId>spring-security-web</artifactId>
		    <version>5.5.3</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-config -->
		<dependency>
		    <groupId>org.springframework.security</groupId>
		    <artifactId>spring-security-config</artifactId>
		    <version>5.5.3</version>
		</dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.security/spring-security-taglibs -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-taglibs</artifactId>
            <version>5.5.3</version>
        </dependency>
	</dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-eclipse-plugin</artifactId>
                <version>2.9</version>
                <configuration>
                    <additionalProjectnatures>
                        <projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
                    </additionalProjectnatures>
                    <additionalBuildcommands>
                        <buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
                    </additionalBuildcommands>
                    <downloadSources>true</downloadSources>
                    <downloadJavadocs>true</downloadJavadocs>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.5.1</version>
                <configuration>
                    <source>${java-version}</source>
                    <target>${java-version}</target>
                    <compilerArgument>-Xlint:all</compilerArgument>
                    <showWarnings>true</showWarnings>
                    <showDeprecation>true</showDeprecation>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <version>1.2.1</version>
                <configuration>
                    <mainClass>org.test.int1.Main</mainClass>
                </configuration>
            </plugin>
            <plugin>
            	<!-- web.xml 삭제, java config 설정 추가 -->
            	<groupId>org.apache.maven.plugins</groupId>
            	<artifactId>maven-war-plugin</artifactId>
            	<version>3.2.0</version>
            	<configuration>
            		<failOnMissingWebXml>false</failOnMissingWebXml>
            	</configuration>
            </plugin>
        </plugins>
    </build>
</project>





저작자표시

'Spring > Spring 공부' 카테고리의 다른 글

[spring] security 2. Board register 게시판 작성 + 저장  (0) 2023.06.22
[spring] security 1.com.myweb.www.config설정  (0) 2023.06.22
[spring] 파일 입출력  (0) 2023.06.13
[spring] 댓글 2. 댓글 출력  (0) 2023.06.12
[spring] 댓글 1. 댓글 작성  (0) 2023.06.09

'Spring/Spring 공부'의 다른글

  • 현재글[spring] security 0. DB생성, pom.xml작성

관련글

티스토리툴바
